SPF000 主要構造
SPF000 車両スペック

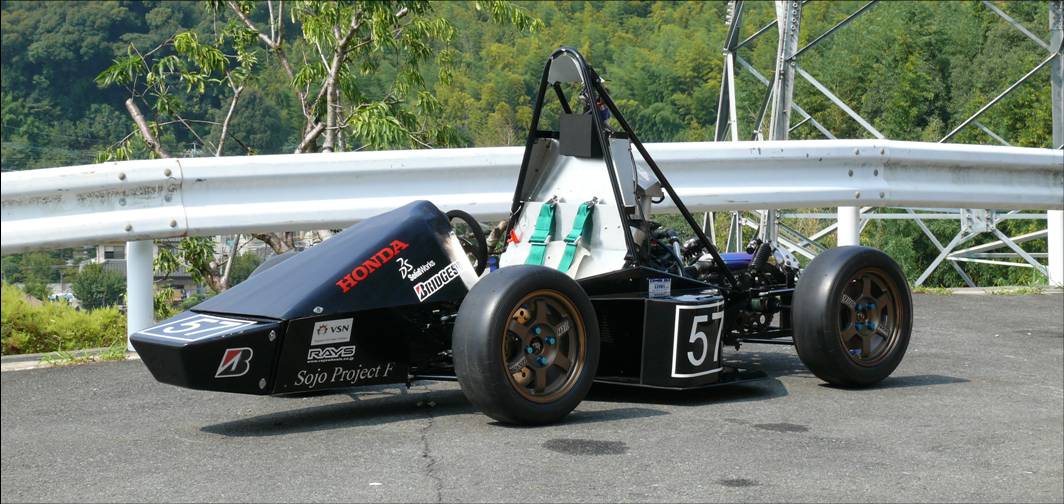

企画・設計から始まり図面作成、機械加工、溶接と初めての経験の連続!当初の予定より大幅に製作が遅れた。しかし、「何としても車両を完成させ大会に出場する」という想いだけで、夏休み返上の突貫作業により、何とか8月末に車両が完成!!SPF000の誕生である。
Frame | Steel spaceframe |
Body-work | GFRP |
Suspension(Front& Rear) | Front & Rear : Double unequal length A-arm Push rod |
Overall Length | 3000(mm) |
Overall Heigth | 1225(mm) |
Wheelbase | 1600(mm) |
Front Track/ Rear Track | 1200(mm)/1200(mm) |
Gross Vehicle mass | 300(kg) |
Fr.Rr Weight Dist. | 40:60 |
Ground Clearance | 48(mm) |
Wheel & Tires | 13inch RAYS 180/510-13 BRIDGESTONE Bias |
Engine | PC40E HONDA CBR600RR |
Displacement | 599(cc) |
max.power | 69(ps) /11500 (rpm) |
max.torque | 5.2(kgf)/8500 (rpm) |
Induction type | Naturally aspirate |
Fuel tank Volume | 7(L) |
Shifter | Manual |
Final Drive&Differential | Chain Drive |
Brakes | Front:2 outboard Brembo calipers Rear:inboard Tokiko calipers |
